Porsche Macan Turbo Electric

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Porsche Macan Turbo Electric

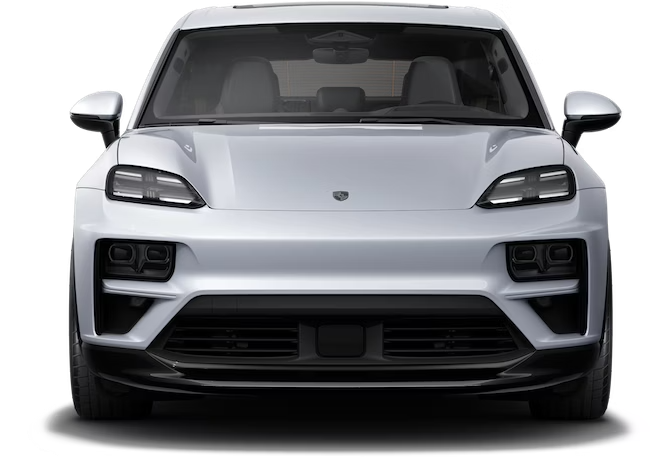

    Click image for larger version

Name:	F44BDF5A72164B019EA267F0FB7051F3_6C7B7BF3D5AB480CAC00F2CD5FFBC453_macan-turbo-front.png
Views:	72
Size:	172.0 KB
ID:	88

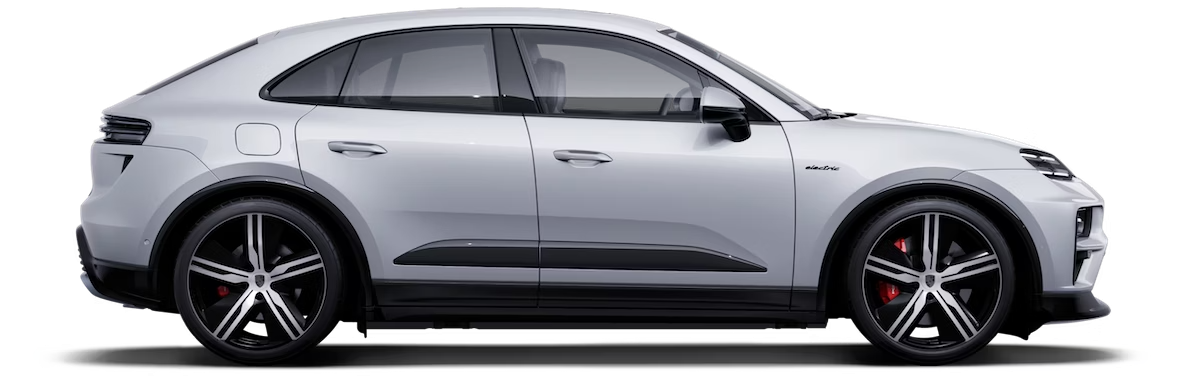

    Click image for larger version

Name:	6706E68927CC491AA3BABF9D186D753A_44B155DC8A264171A183504B0439ECB8_macan-turbo-side.png
Views:	22
Size:	288.3 KB
ID:	89

    Technical Details


    Power unit

    Power up to (kW) 430 kW

    Power up to (PS) 584 PS

    Overboost Power with Launch Control up to (kW) 470 kW

    Overboost Power with Launch Control up to (PS) 639 PS

    Max. torque with Launch Control 1130 Nm

    Max. wheel torque with Launch Control 10232 Nm



    Consumption/Emissions

    CO2 emissions combined 0 g/km



    Consumption/Emissions WLTP

    CO2-emissions combined (WLTP) 0 g/km

    Electrical consumption combined (WLTP) 20.7 - 18.8 kWh/100 km

    Electrical consumption urban (WLTP) 15.9 - 14.6 kWh/100 km



    Consumption/Emissions (ECE)

    Electrical consumption combined 17.2 kWh/100 km


    Range

    Electric range combined (WLTP) 518 - 591 km

    Electric range urban (WLTP) 670 - 765 km

    Electric range combined (ECE) 616 km


    Charging

    Gross battery capacity 100 kWh

    Net battery capacity 96 kWh

    Maximum charging power with direct current (DC) 270 kW

    Charging time for alternating current (AC) with 9.6kW (0 to up to 100%) 11 h

    Charging time for alternating current (AC) with 11kW (0 to up to 100%) 10 h

    Charging time for direct current (DC) with 120kW (10 to up to 80%) 46 min

    Charging time for direct current (DC) with 150kW (10 to up to 80%) 33 min

    Charging time for direct current (DC) with maximum charging power (10 to up to 80%) 21 min


    Body

    Length 4784 mm

    Width 1938 mm

    Width (with mirrors) 2152 mm

    Height 1621 mm

    Wheelbase 2893 mm

    Turning circle 12.1 m

    Unladen weight (DIN) 2405 kg

    Unladen weight (EU) 2480 kg

    Permissible gross weight 2950 kg

    Maximum load 545 kg

    Max. towing load (braked) 2000 kg

    Max. towing load (unbraked) 750 kg

    Nose weight (EG) 80 kg

    Maximum permissible roof load with Porsche roof transport system 75 kg



    Capacities

    Luggage compartment volume, front 84 l

    Open luggage compartment volume (up to the upper edge of the rear seats) 480 l

    Largest luggage compartment volume (behind front seats, up to roof) 1288 l



    Performance

    Top speed 260 km/h

    Acceleration 0 - 60 mph with Launch Control 3.1 s

    Acceleration 0 - 100 km/h with Launch Control 3.3 s

    Acceleration 0 - 160 km/h with Launch Control 7.4 s

    Acceleration 0 - 200 km/h with Launch Control 11.7 s

    Acceleration (80-120km/h) (50-75 mph) with Launch Control 2 s

    1/4 mile with Launch Control 11.4 s


    Terrain features

    Max. clearance between ground and water-sensitive parts air suspension (normal ride height) 300 mm

    Max. clearance between ground and water-sensitive parts air suspension (off-road ride height) 340 mm

    Slope angle, front/rear air suspension (normal ride height) 12.6 - 20.6 °

    Ramp break over angle air suspension (normal ride height) 14.8 °

    Ramp break over angle air suspension (off-road ride height) 18 °

    Max. ground clearance air suspension (normal ride height) 184 mm

    Max. ground clearance air suspension (off-road ride height) 224 mm
